R-3L XP: Electromechanical stretcher support with lifting and tilting functions

stem-green-and-blue-logo

Eliminate the loading effort!

Discover Sherpa
Lightweight and robust stretcher support, with the option of adding an optional compartment for a spine board or scoop stretcher. Compared to the previous version, the R-3L XP introduces several new features: lateral LED bars indicate operating status, with a green light (customisable) for ready- to-use mode and a flashing yellow light during operation. The new motherboard, equipped with IP67 protection, ensures water resistance, while the integrated Bluetooth communication enables real-time monitoring and automatic reporting of preventive maintenance needs. The safety system also allows the stretcher to be unloaded even in the absence of power supply.
WITH INTEGRATED BLUETOOTH SYSTEM
1
2
3
4
r-3l-xp
1

Ergonomic lever for tray
extraction with automatic tilting
function for stretcher loading

2

Sideways movement lever

3

Edge protection.

4

LED bars

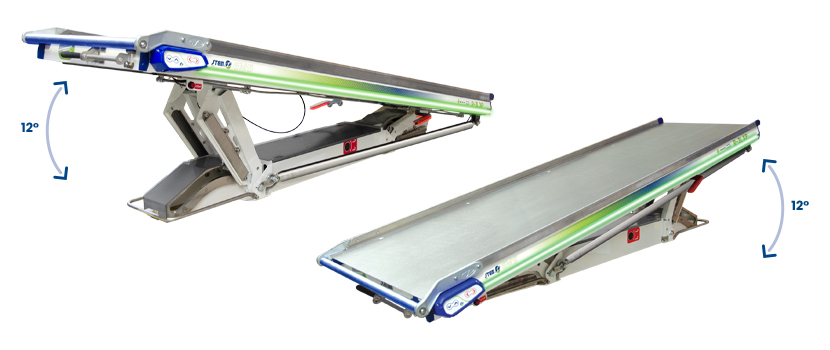

  • Tilt adjustament in Trendelenburg and anti-Trendelenburg positions

    electromechanical-stretcher-support-r-3l-xp-shown-in-trendelenburg-and-reverse-trendelenburg-positions-with-a-12-degree-tilt-in-both-directions

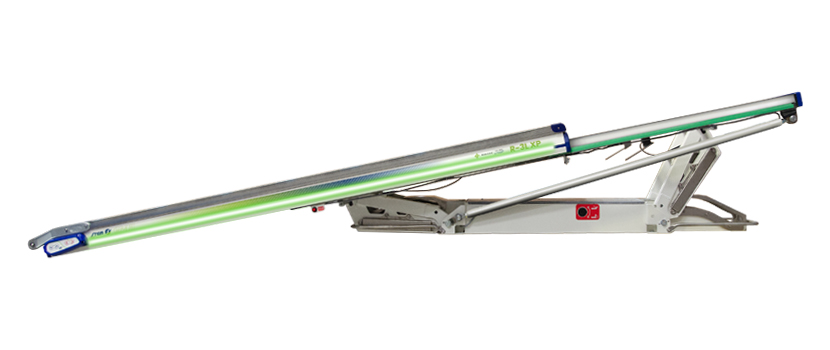

  • Loading height adjustment with manual stretcher unloading system in case of power failure

    electromechanical-stretcher-support-r-3l-xp-shown-in-side-view-demonstrating-the-adjustable-loading-height

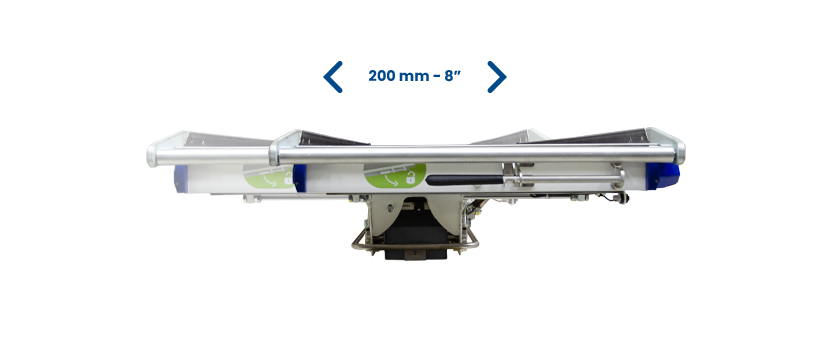

  • Lateral movement lockable in any position

    r-3l-xp-lateral-translation-lockable-in-any-position
PreviousNext
123

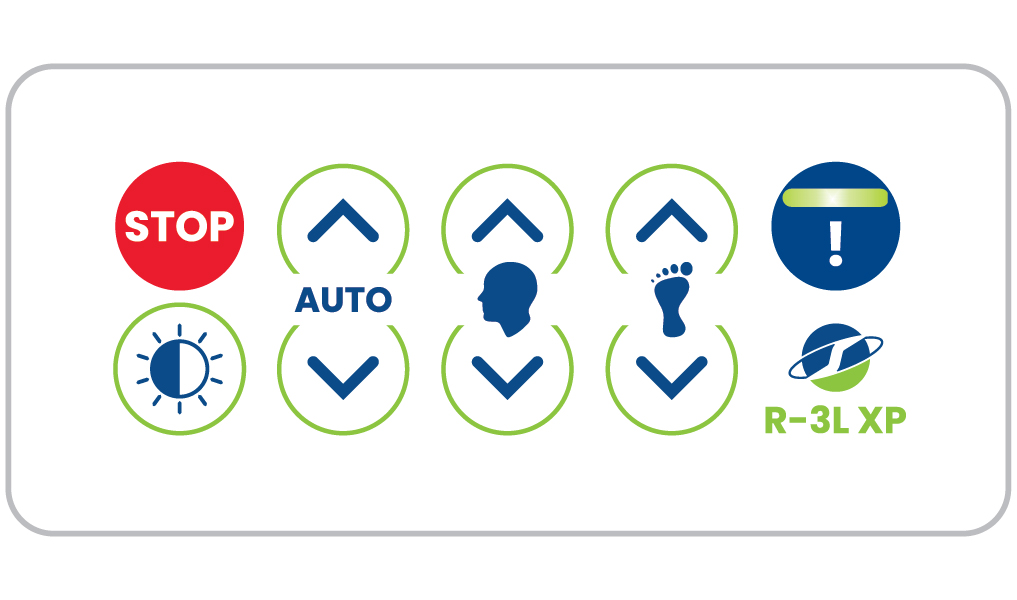

r-3l-xp-wall-mounted-control-panel-for-adjusting-stretcher-platform-height-and-trendelenburg-and-anti-trendelenburg-positions

Wall-mounted control panel:

  • Trendelenburg and Reverse Trendelenburg position
  • Height adjustment of the stretcher tray
modu-1-combined-with-the-r-3l-xp-support-to-create-a-storage-compartment-for-a-spine-board-or-scoop-stretcher

MODU-1 combined with R-3L XP to obtain a storage space for spine board or scoop stretcher

Gallery

PreviousNext
12345678910

Technical Information

MAXIMUM CAPACITY 250 Kg
DIMENSIONS 1964×630
h 217 – 482 mm
STRETCHER SUPPORT WEIGHT 81,5 kg
ELECTROMECHANICAL SUPPORT 12V DC
ABSORPTION 22 – 45 A
CERTIFICATIONS & HOMOLOGATIONS UN ECE Regulation No.10 – Rev6
2006/42/EU
2014/53/EU – RED
2014/30/EU – EMC
EN 1789 – EN1865-5 + Annex B
10g Crash Tested
READY FOR SHERPA
✓
WARRANTY 5 years

  • Maximum capacity

    250 kg

  • Dimensions

    1964×630
    h 217 – 482 mm

  • Stretcher support weight

    81,5 kg

  • Electromechanical support

    12V DC

  • Warranty

    5 years

  • Absorption

    22 – 45 A

  • Certifications & Homologations

    UN ECE Regulation No.10 – Rev6
    2006/42/EU
    2014/53/EU – RED
    2014/30/EU – EMC
    EN 1789 – EN1865-5 + Annex B
    10g Crash Tested

  • Ready for SHERPA

    ✓
